Despliegue de OpenStack Singlenode con Packstack, VirtualBox y Vagrant

Prerequisitos del sistema

Desde nuestro sistema Operativo (Windows, macOS, Linux) debemos tener instaladas los siguientes programas:

  • VirtualBox
  • Vagrant

Este escenario de OpenStack que será desplegado consta de 1 VM: un node que contiene las funcionalidades de controller, network, compute, etc. integradas. Se requiere al menos 10 GB de RAM y 4 CPUs.

Important

Si existen errores en la creación de las instancias o que las instancias creadas se apagan automáticamete, esto podría deberse a la falta de recursos en el host.

Revisar la memoria RAM disponible con free -m y el uso de CPU con top o htop. En caso los recursos se están usando al máximo, apagar la VM y asignarle más recursos desde el host en VirtualBox.

Configuración de VirtualBox

Host-only Network Adapter

  1. Crear un Host-only Network Adapter haciendo clic en el botón Global Tools, Host Network Manager. Clic en el botón Create:
../../../_images/Windows-VirtualBox-HostNetworkManager-Create-Adapter-11.png

Windows - VirtualBox v5.2 - Crear un nuevo adaptador

../../../_images/Linux-VirtualBox-HostNetworkManager-Create-Adapter-11.png

Linux - VirtualBox v6.0 - Crear un nuevo adaptador

  1. Se creará un adaptador con un nombre predefinido al cual podremos editar la dirección IPv4 respectiva. En este caso no será necesario activar la opción de DHCP:

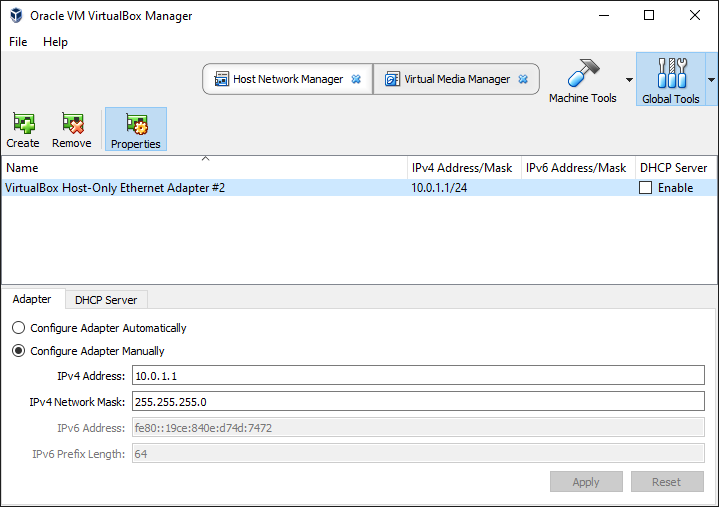

../../../_images/Windows-VirtualBox-HostNetworkManager-Create-Adapter-21.png

Windows - VirtualBox v5.2 - Configuración del adaptador

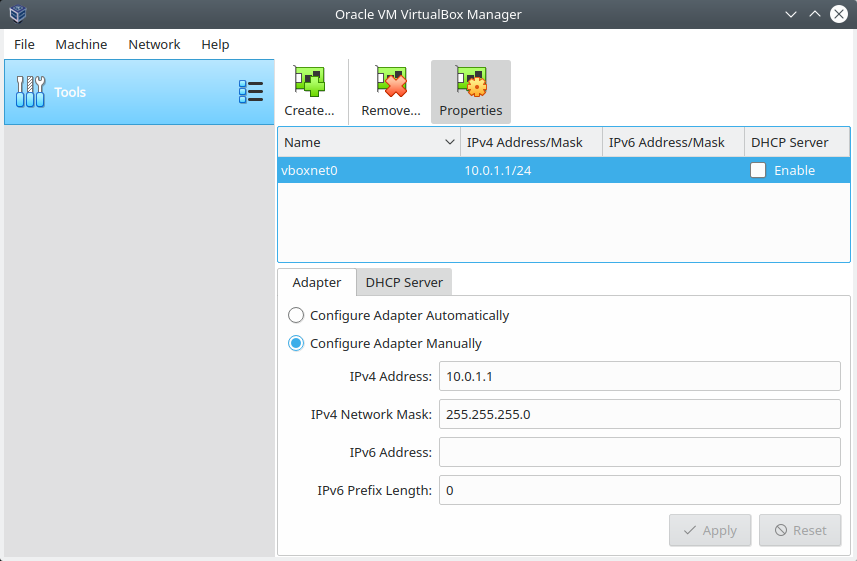

../../../_images/Linux-VirtualBox-HostNetworkManager-Create-Adapter-21.png

Linux - VirtualBox v6.0 - Configuración del adaptador

Note

Sobre el adaptador de red creado:

  • El adaptador pertenece a la red de management
  • La dirección IP del adaptador es el Host-side de la red

Definición del archivo Vagrantfile

El archivo Vagrantfile se define de la siguiente forma:

# -*- mode: ruby -*-
# vi: set ft=ruby :
servers=[
  {
    :hostname => "packstack",
    :box => "centos/7",
    :ram => 10240,
    :cpu => 4,
    :script => "sh /vagrant/packstack_setup.sh"
  }
]
# All Vagrant configuration is done below. The "2" in Vagrant.configure
# configures the configuration version (we support older styles for
# backwards compatibility). Please don't change it unless you know what
# you're doing.
Vagrant.configure("2") do |config|
  servers.each do |machine|
    config.vm.define machine[:hostname] do |node|
      node.vm.box = machine[:box]
      node.vm.hostname = machine[:hostname]
      node.vm.provider "virtualbox" do |vb|
        vb.customize ["modifyvm", :id, "--memory", machine[:ram], "--cpus", machine[:cpu]]
        vb.customize ["modifyvm", :id, "--nic2", "hostonly", "--hostonlyadapter2", "VirtualBox Host-Only Ethernet Adapter #2"]
      end
      node.vm.provision "shell", inline: machine[:script], privileged: true, run: "once"
    end
  end
end

Important

  • Vagrant configura automáticamente la primera interfaz de red de una nueva VM en la red NAT. A través de esta red podemos acceder desde el sistema host al Dashboard o CLI del nodo.
  • La primera interfaz de red se usa para tener salida a Internet.
  • La segunda interfaz sirve para proveer conectividad del sistema host a la VM (y viceversa).

Definición de archivo de configuración del nodo

En el mismo directorio donde tenemos almacenado el archivo Vagrantfile guardaremos el script .sh que se correrá cuando Vagrant lance la VM dentro del nodo:

Controller (packstack_setup.sh)

#! /bin/sh

export LANG=en_US.utf-8
export LC_ALL=en_US.utf-8

sed -i -e 's/enabled=1/enabled=0/g' /etc/yum/pluginconf.d/fastestmirror.conf

cat <<- EOF > /etc/sysconfig/network-scripts/ifcfg-eth1
DEVICE="eth1"
DEFROUTE="no"
BOOTPROTO="static"
IPADDR="10.0.1.20"
NETMASK="255.255.255.0"
DNS1="8.8.8.8"
TYPE="Ethernet"
ONBOOT=yes
EOF

ifdown eth1
ifup eth1

cat <<- EOF > /etc/hosts
127.0.0.1 localhost
10.0.1.20 packstack
EOF

echo 'centos' >/etc/yum/vars/contentdir

systemctl disable firewalld
systemctl stop firewalld
systemctl disable NetworkManager
systemctl stop NetworkManager
systemctl enable network
systemctl start network

yum install -y centos-release-openstack-queens
yum update -y
yum install -y openstack-packstack
yum install -y lvm2

packstack --install-hosts="10.0.1.20" --os-heat-install=y --os-heat-cfn-install=y --os-neutron-lbaas-install=y --keystone-admin-passwd="openstack" --keystone-demo-passwd="openstack"

Correr el entorno Vagrant e Instalación de OpenStack con Packstack

En el terminal, cambiar de directorio al lugar donde tenemos almacenado el archivo Vagrantfile y el script .sh del nodo. Luego, desplegar la máquina virtual con vagrant up:

$ cd singlenode-packstack-vagrant

$ vagrant up

Comenzará la configuración y despliegue de la máquina virtual en VirtualBox conforme se ha especificado en el archivo Vagrantfile, luego correrá automáticamente el script .sh que se ha definido para la VM:

../../../_images/vagrant-deploy-virtualbox-vm.png

VirtualBox - VM desplegada por Vagrant

La instalación de Packstack en este nodo iniciará automáticamente. Luego de media hora aproximadamente (32 minutos en total: despliegue de VMs + instalación de OpenStack), la instalación de OpenStack con Packstack habrá finalizado y podremos ingresar al Dashboard o al CLI de OpenStack.

Note

El Dashboard de OpenStack podría demorar un corto tiempo para arrancar la primera vez luego de haber instalado OpenStack.

Pruebas en el entorno OpenStack desplegado

Ubicándonos el mismo directorio donde tenemos el archivo Vagrantfile entraremos al terminal de la VM packstack con el siguiente comando:

$ vagrant ssh packstack
$ sudo su
$ cd /root

Ahora realizaremos una prueba de despliegue desde el CLI:

Important

La imagen de CirrOS que se crea por defecto como demo al instalar Packstack tiene fallos pues tiene un tamaño reducido de 273 bytes. La causa de esto es que puede ser que se haya descargado sin la opción -L del comando curl. Por lo tanto, crearemos nuestra propia imagen CirrOS:

La topología que se desea lograr es la siguiente:

../../../_images/openstack-sample-topology1.png

OpenStack - Topología desplegada

Y los comandos que ejecutaremos en el nodo controller serán los siguientes:

'#' source keystonerc_admin

'#' mkdir images
'#' curl -o /root/images/cirros-0.4.0-x86_64-disk.img -L http://download.cirros-cloud.net/0.4.0/cirros-0.4.0-x86_64-disk.img
'#' openstack image create --min-disk 1 --min-ram 128 --public --disk-format qcow2 --file /root/images/cirros-0.4.0-x86_64-disk.img cirros1

'#' source keystonerc_demo

'#' openstack network list

+--------------------------------------+---------+--------------------------------------+
| ID                                   | Name    | Subnets                              |
+--------------------------------------+---------+--------------------------------------+
| 0c2f47d2-d672-4aae-a83e-e5e40faf0197 | public  | 8a0934e6-6826-44b8-8f38-dba27e301021 |
| 6665f7ee-4692-442b-a7dc-e38de59a32a3 | private | 4fccbd2e-ff40-4c75-acb3-5781360af1b5 |
+--------------------------------------+---------+--------------------------------------+

'#' openstack server create --image cirros1 --flavor 1 --min 2 --max 2 --nic net-id=6665f7ee-4692-442b-a7dc-e38de59a32a3 test

En este despliegue de prueba se han creado dos instancias al mismo tiempo y con las mismas características corriendo en el mismo nodo (o equivalentemente, en el mismo hypervisor).

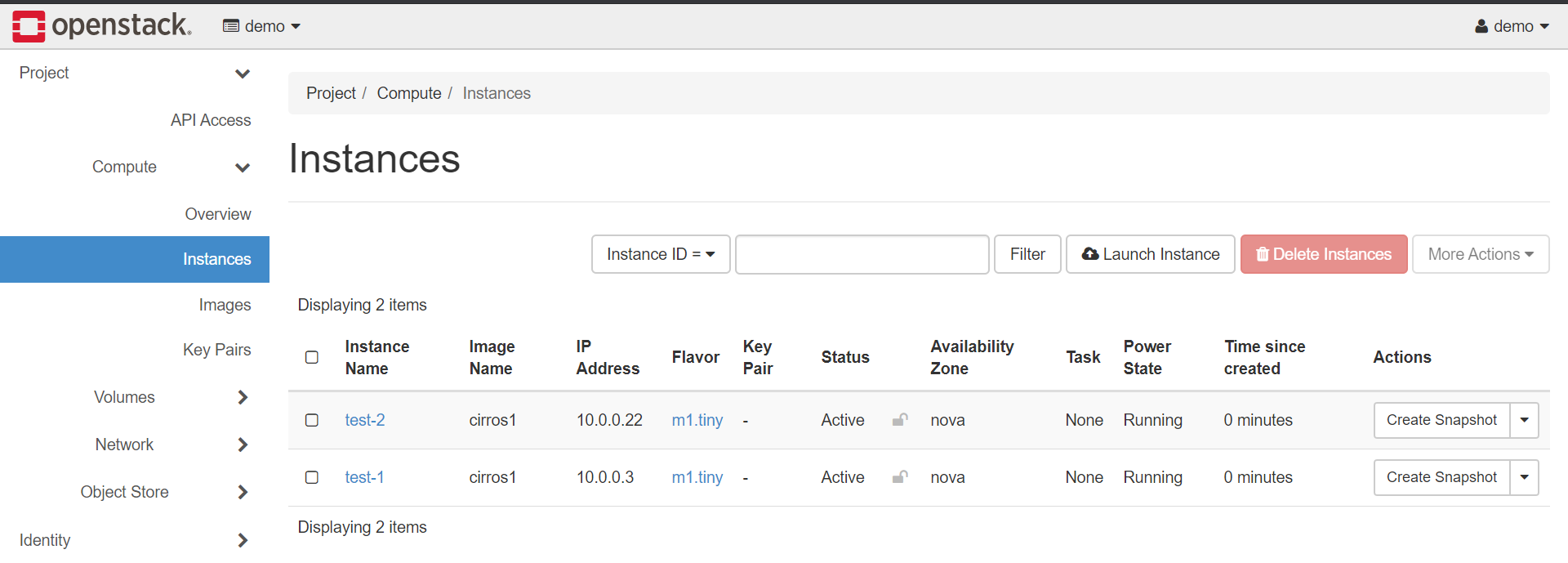

../../../_images/openstack-singlenode-test-instances.png

OpenStack - Instancias desplegadas

Podremos ingresar a la consola de cada instancia desde el dashboard y probar conectividad entre ellas:

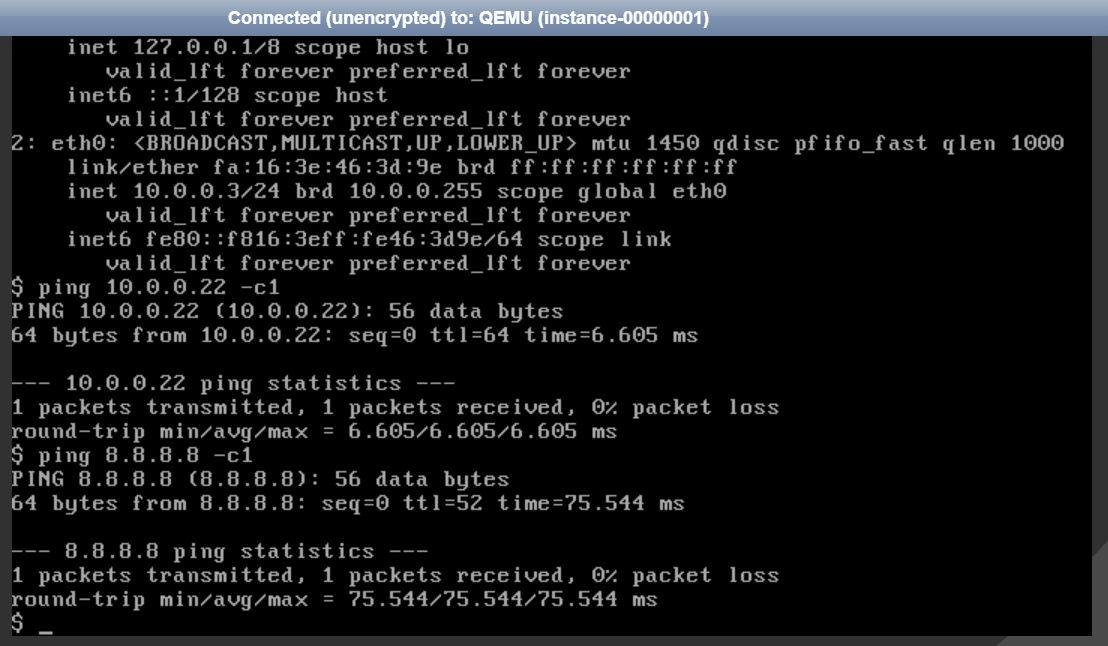

../../../_images/openstack-singlenode-test-instance-test-1.png

OpenStack - Consola test-1

Anexo 1: Configuración de red desplegada

Host configuration (Windows user)

Las interfaces de red que tenemos en el sistema host de Windows son las siguientes:

C:\Users\usuario>ipconfig

Configuración IP de Windows


Adaptador de Ethernet VirtualBox Host-Only Network #2:

Sufijo DNS específico para la conexión. . :
Dirección IPv4. . . . . . . . . . . . . . : 10.0.1.1
Máscara de subred . . . . . . . . . . . . : 255.255.255.0
Puerta de enlace predeterminada . . . . . :

Adaptador de Ethernet Ethernet:

Sufijo DNS específico para la conexión. . :
Dirección IPv4. . . . . . . . . . . . . . : 192.168.1.10
Máscara de subred . . . . . . . . . . . . : 255.255.255.0
Puerta de enlace predeterminada . . . . . : 192.168.1.1
  • La interfaz Adaptador de Ethernet Ethernet es nuestra tarjeta de red física con salida a Internet a través de un router físico (192.168.1.1). Se le ha asignado la IP 192.168.1.10.
  • La interfaz Adaptador de Ethernet VirtualBox Host-Only Network #2 ha sido creada con VirtualBox dentro de Host Network Manager. Se le ha asignado la IP 10.0.1.1. Esta interfaz no cuenta con salida al exterior (Internet).

VM configuration (virtualBox config)

La VM creada como único nodo donde se instala OpenStack posee 2 interfaces que pueden verse desde el lado del SO host o del lado del SO guest, obteniendo información útil de su implementación:

Interfaces desde el lado host

La VM con sistema CentOS creada por VirtualBox posee dos interfaces conectadas virtualmente:

  1. Adaptador 1 - Interfaz tipo NAT:

La primera interfaz de red es usada para que la VM tenga salida a Internet (en la VM se ve como la interfaz enp0s3 o eth0):

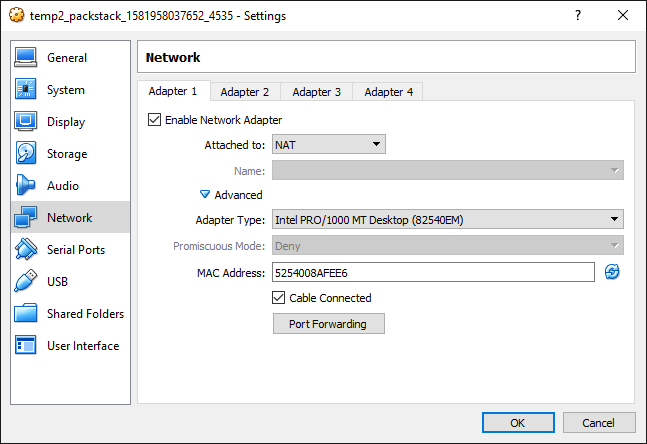

../../../_images/vm-singlenode-packstack-adapter1.png

VirtualBox - Adaptador 1

  • La interfaz se encuentra conectada a una red virtual tipo NAT.
  • En este caso la interfaz tiene asignada la IP 10.0.2.15.
  1. Adaptador 2 - Interfaz tipo Host-only Adapter:

La segunda interfaz de red es usada para que exista comunicación entre el sistema host y la VM (en la VM se ve como la interfaz enp0s8 o eth1):

../../../_images/vm-singlenode-packstack-adapter2.png

VirtualBox - Adaptador 2

  • La interfaz se encuentra conectada a la red física del host, siendo del tipo Host-only Adapter. Desde la VM podemos llegar a los equipos dentro de la red host (192.168.1.0/24).
  • En este caso la interfaz tiene asignada la IP 10.0.1.20.

Interfaces desde el lado guest

Las IPs de cada interfaz han sido obtenidas desde la consola de la VM:

'#' ip addr

...

2: enp0s3: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000
    link/ether 08:00:27:03:ad:05 brd ff:ff:ff:ff:ff:ff
    inet 10.0.2.15/24 brd 10.0.2.255 scope global noprefixroute dynamic enp0s3
        valid_lft 42944sec preferred_lft 42944sec
    inet6 fe80::a00:27ff:fe03:ad05/64 scope link noprefixroute
        valid_lft forever preferred_lft forever
3: enp0s8: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000
    link/ether 08:00:27:3a:ab:74 brd ff:ff:ff:ff:ff:ff
    inet 10.0.1.20/24 brd 10.0.0.255 scope global noprefixroute enp0s8
        valid_lft forever preferred_lft forever
    inet6 fe80::a00:27ff:fe3a:ab74/64 scope link
        valid_lft forever preferred_lft forever

...
  1. Adaptador 1 - Interfaz tipo NAT: enp0s3 o eth0
  2. Adaptador 2 - Interfaz tipo Host-only Adapter: enp0s8 o eth1

VM configuration (OpenStack config)

  • Interfaz dentro de la red pública de OpenStack:

La interfaz br-ex es en realidad un OvS con una interfaz interna que posee una IP dentro de la red pública:

'#' ip addr

...

5: br-ex: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UNKNOWN group default qlen 1000
    link/ether 6a:f2:c8:bc:42:4e brd ff:ff:ff:ff:ff:ff
    inet 172.24.4.1/24 scope global br-ex
       valid_lft forever preferred_lft forever
    inet6 fe80::68f2:c8ff:febc:424e/64 scope link
       valid_lft forever preferred_lft forever

...

En este caso, la red pública es 172.24.4.0/24 y br-ex tiene la IP 172.24.4.1 asignada.

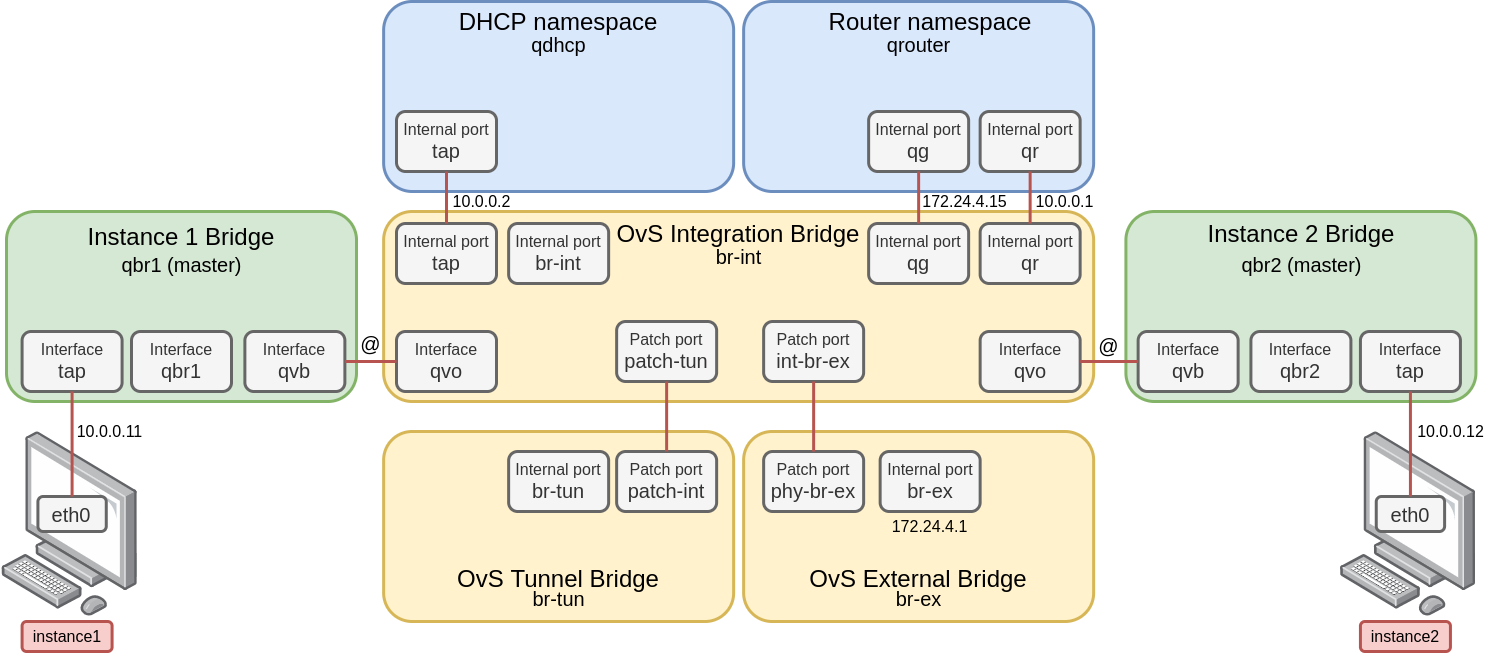

Anexo 3: Interfaces de red, OvS, bridges

Se presentan los bridges, OvS e interfaces de red de la VM con el despliegue de OpenStack, solo con los elementos de demo instalados y 2 instancias lanzadas manualmente:

[root@packstack ~]'#' ip address

1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000
    link/ether 52:54:00:8a:fe:e6 brd ff:ff:ff:ff:ff:ff
    inet 10.0.2.15/24 brd 10.0.2.255 scope global noprefixroute dynamic eth0
       valid_lft 80714sec preferred_lft 80714sec
    inet6 fe80::5054:ff:fe8a:fee6/64 scope link
       valid_lft forever preferred_lft forever
3: eth1: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000
    link/ether 08:00:27:d3:26:2e brd ff:ff:ff:ff:ff:ff
    inet 10.0.1.20/24 brd 10.0.1.255 scope global noprefixroute eth1
       valid_lft forever preferred_lft forever
    inet6 fe80::a00:27ff:fed3:262e/64 scope link
       valid_lft forever preferred_lft forever
4: ovs-system: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN group default qlen 1000
    link/ether 92:7f:d2:a2:0b:89 brd ff:ff:ff:ff:ff:ff
5: br-ex: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UNKNOWN group default qlen 1000
    link/ether 6a:f2:c8:bc:42:4e brd ff:ff:ff:ff:ff:ff
    inet 172.24.4.1/24 scope global br-ex
       valid_lft forever preferred_lft forever
    inet6 fe80::68f2:c8ff:febc:424e/64 scope link
       valid_lft forever preferred_lft forever
6: br-int: <BROADCAST,MULTICAST> mtu 1450 qdisc noop state DOWN group default qlen 1000
    link/ether 1a:26:e1:53:59:47 brd ff:ff:ff:ff:ff:ff
7: br-tun: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN group default qlen 1000
    link/ether 12:f8:4a:f2:1d:42 brd ff:ff:ff:ff:ff:ff
11: qbrbc1cf336-e1: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1450 qdisc noqueue state UP group default qlen 1000
    link/ether fe:16:3e:51:be:1b brd ff:ff:ff:ff:ff:ff
12: qbr0ed97bfb-fa: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1450 qdisc noqueue state UP group default qlen 1000
    link/ether ca:06:e8:28:78:a6 brd ff:ff:ff:ff:ff:ff
13: qvobc1cf336-e1@qvbbc1cf336-e1: <BROADCAST,MULTICAST,PROMISC,UP,LOWER_UP> mtu 1450 qdisc noqueue master ovs-system state UP group default qlen 1000
    link/ether 7a:fb:e2:b2:12:4b brd ff:ff:ff:ff:ff:ff
    inet6 fe80::78fb:e2ff:feb2:124b/64 scope link
       valid_lft forever preferred_lft forever
14: qvbbc1cf336-e1@qvobc1cf336-e1: <BROADCAST,MULTICAST,PROMISC,UP,LOWER_UP> mtu 1450 qdisc noqueue master qbrbc1cf336-e1 state UP group default qlen 1000
    link/ether fe:74:14:d1:17:28 brd ff:ff:ff:ff:ff:ff
    inet6 fe80::fc74:14ff:fed1:1728/64 scope link
       valid_lft forever preferred_lft forever
15: qvo0ed97bfb-fa@qvb0ed97bfb-fa: <BROADCAST,MULTICAST,PROMISC,UP,LOWER_UP> mtu 1450 qdisc noqueue master ovs-system state UP group default qlen 1000
    link/ether da:3c:b2:98:fd:df brd ff:ff:ff:ff:ff:ff
    inet6 fe80::d83c:b2ff:fe98:fddf/64 scope link
       valid_lft forever preferred_lft forever
16: qvb0ed97bfb-fa@qvo0ed97bfb-fa: <BROADCAST,MULTICAST,PROMISC,UP,LOWER_UP> mtu 1450 qdisc noqueue master qbr0ed97bfb-fa state UP group default qlen 1000
    link/ether ca:06:e8:28:78:a6 brd ff:ff:ff:ff:ff:ff
    inet6 fe80::c806:e8ff:fe28:78a6/64 scope link
       valid_lft forever preferred_lft forever
17: tap0ed97bfb-fa: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1450 qdisc pfifo_fast master qbr0ed97bfb-fa state UNKNOWN group default qlen 1000
    link/ether fe:16:3e:b3:2d:11 brd ff:ff:ff:ff:ff:ff
    inet6 fe80::fc16:3eff:feb3:2d11/64 scope link
       valid_lft forever preferred_lft forever
18: tapbc1cf336-e1: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1450 qdisc pfifo_fast master qbrbc1cf336-e1 state UNKNOWN group default qlen 1000
    link/ether fe:16:3e:51:be:1b brd ff:ff:ff:ff:ff:ff
    inet6 fe80::fc16:3eff:fe51:be1b/64 scope link
       valid_lft forever preferred_lft forever

[root@packstack ~]'#' ovs-vsctl show

d9b4a0db-3fc2-41b3-a089-e2fa9ddd0a3f
    Manager "ptcp:6640:127.0.0.1"
        is_connected: true
    Bridge br-int
        Controller "tcp:127.0.0.1:6633"
            is_connected: true
        fail_mode: secure
        Port patch-tun
            Interface patch-tun
                type: patch
                options: {peer=patch-int}
        Port "qvo0ed97bfb-fa"
            tag: 1
            Interface "qvo0ed97bfb-fa"
        Port br-int
            Interface br-int
                type: internal
        Port "qvobc1cf336-e1"
            tag: 1
            Interface "qvobc1cf336-e1"
        Port "qg-c38b2759-b4"
            tag: 2
            Interface "qg-c38b2759-b4"
                type: internal
        Port int-br-ex
            Interface int-br-ex
                type: patch
                options: {peer=phy-br-ex}
        Port "tape0a80b5f-e1"
            tag: 1
            Interface "tape0a80b5f-e1"
                type: internal
        Port "qr-480f039f-df"
            tag: 1
            Interface "qr-480f039f-df"
                type: internal
    Bridge br-ex
        Controller "tcp:127.0.0.1:6633"
            is_connected: true
        fail_mode: secure
        Port br-ex
            Interface br-ex
                type: internal
        Port phy-br-ex
            Interface phy-br-ex
                type: patch
                options: {peer=int-br-ex}
    Bridge br-tun
        Controller "tcp:127.0.0.1:6633"
            is_connected: true
        fail_mode: secure
        Port patch-int
            Interface patch-int
                type: patch
                options: {peer=patch-tun}
        Port br-tun
            Interface br-tun
                type: internal
    ovs_version: "2.11.0"

[root@packstack ~]'#' brctl show

bridge name             bridge id               STP enabled     interfaces
qbr0ed97bfb-fa          8000.ca06e82878a6       no              qvb0ed97bfb-fa
                                                                tap0ed97bfb-fa

qbrbc1cf336-e1          8000.fe163e51be1b       no              qvbbc1cf336-e1
                                                                tapbc1cf336-e1

Anexo 4: Archivo answers.txt de packstack generado

'#' cat /home/vagrant/packstack-answers-20200217-234314.txt

[general]

# Path to a public key to install on servers. If a usable key has not
# been installed on the remote servers, the user is prompted for a
# password and this key is installed so the password will not be
# required again.
CONFIG_SSH_KEY=/root/.ssh/id_rsa.pub

# Default password to be used everywhere (overridden by passwords set
# for individual services or users).
CONFIG_DEFAULT_PASSWORD=

# The amount of service workers/threads to use for each service.
# Useful to tweak when you have memory constraints. Defaults to the
# amount of cores on the system.
CONFIG_SERVICE_WORKERS=%{::processorcount}

# Specify 'y' to install MariaDB. ['y', 'n']
CONFIG_MARIADB_INSTALL=y

# Specify 'y' to install OpenStack Image Service (glance). ['y', 'n']
CONFIG_GLANCE_INSTALL=y

# Specify 'y' to install OpenStack Block Storage (cinder). ['y', 'n']
CONFIG_CINDER_INSTALL=y

# Specify 'y' to install OpenStack Shared File System (manila). ['y',
# 'n']
CONFIG_MANILA_INSTALL=n

# Specify 'y' to install OpenStack Compute (nova). ['y', 'n']
CONFIG_NOVA_INSTALL=y

# Specify 'y' to install OpenStack Networking (neutron) ['y']
CONFIG_NEUTRON_INSTALL=y

# Specify 'y' to install OpenStack Dashboard (horizon). ['y', 'n']
CONFIG_HORIZON_INSTALL=y

# Specify 'y' to install OpenStack Object Storage (swift). ['y', 'n']
CONFIG_SWIFT_INSTALL=y

# Specify 'y' to install OpenStack Metering (ceilometer). Note this
# will also automatically install gnocchi service and configures it as
# the metrics backend. ['y', 'n']
CONFIG_CEILOMETER_INSTALL=y

# Specify 'y' to install OpenStack Telemetry Alarming (Aodh). Note
# Aodh requires Ceilometer to be installed as well. ['y', 'n']
CONFIG_AODH_INSTALL=y

# Specify 'y' to install OpenStack Events Service (panko). ['y', 'n']
CONFIG_PANKO_INSTALL=n

# Specify 'y' to install OpenStack Data Processing (sahara). In case
# of sahara installation packstack also installs heat.['y', 'n']
CONFIG_SAHARA_INSTALL=n

# Specify 'y' to install OpenStack Orchestration (heat). ['y', 'n']
CONFIG_HEAT_INSTALL=y

# Specify 'y' to install OpenStack Container Infrastructure
# Management Service (magnum). ['y', 'n']
CONFIG_MAGNUM_INSTALL=n

# Specify 'y' to install OpenStack Database (trove) ['y', 'n']
CONFIG_TROVE_INSTALL=n

# Specify 'y' to install OpenStack Bare Metal Provisioning (ironic).
# ['y', 'n']
CONFIG_IRONIC_INSTALL=n

# Specify 'y' to install the OpenStack Client packages (command-line
# tools). An admin "rc" file will also be installed. ['y', 'n']
CONFIG_CLIENT_INSTALL=y

# Comma-separated list of NTP servers. Leave plain if Packstack
# should not install ntpd on instances.
CONFIG_NTP_SERVERS=

# Comma-separated list of servers to be excluded from the
# installation. This is helpful if you are running Packstack a second
# time with the same answer file and do not want Packstack to
# overwrite these server's configurations. Leave empty if you do not
# need to exclude any servers.
EXCLUDE_SERVERS=

# Specify 'y' if you want to run OpenStack services in debug mode;
# otherwise, specify 'n'. ['y', 'n']
CONFIG_DEBUG_MODE=n

# Server on which to install OpenStack services specific to the
# controller role (for example, API servers or dashboard).
CONFIG_CONTROLLER_HOST=10.0.1.20

# List the servers on which to install the Compute service.
CONFIG_COMPUTE_HOSTS=10.0.1.20

# List of servers on which to install the network service such as
# Compute networking (nova network) or OpenStack Networking (neutron).
CONFIG_NETWORK_HOSTS=10.0.1.20

# Specify 'y' if you want to use VMware vCenter as hypervisor and
# storage; otherwise, specify 'n'. ['y', 'n']
CONFIG_VMWARE_BACKEND=n

# Specify 'y' if you want to use unsupported parameters. This should
# be used only if you know what you are doing. Issues caused by using
# unsupported options will not be fixed before the next major release.
# ['y', 'n']
CONFIG_UNSUPPORTED=n

# Specify 'y' if you want to use subnet addresses (in CIDR format)
# instead of interface names in following options:
# CONFIG_NEUTRON_OVS_BRIDGE_IFACES,
# CONFIG_NEUTRON_LB_INTERFACE_MAPPINGS, CONFIG_NEUTRON_OVS_TUNNEL_IF.
# This is useful for cases when interface names are not same on all
# installation hosts.
CONFIG_USE_SUBNETS=n

# IP address of the VMware vCenter server.
CONFIG_VCENTER_HOST=

# User name for VMware vCenter server authentication.
CONFIG_VCENTER_USER=

# Password for VMware vCenter server authentication.
CONFIG_VCENTER_PASSWORD=

# Comma separated list of names of the VMware vCenter clusters. Note:
# if multiple clusters are specified each one is mapped to one
# compute, otherwise all computes are mapped to same cluster.
CONFIG_VCENTER_CLUSTER_NAMES=

# (Unsupported!) Server on which to install OpenStack services
# specific to storage servers such as Image or Block Storage services.
CONFIG_STORAGE_HOST=10.0.2.15

# (Unsupported!) Server on which to install OpenStack services
# specific to OpenStack Data Processing (sahara).
CONFIG_SAHARA_HOST=10.0.2.15

# Comma-separated list of URLs for any additional yum repositories,
# to use for installation.
CONFIG_REPO=

# Specify 'y' to enable the RDO testing repository. ['y', 'n']
CONFIG_ENABLE_RDO_TESTING=n

# To subscribe each server with Red Hat Subscription Manager, include
# this with CONFIG_RH_PW.
CONFIG_RH_USER=

# To subscribe each server to receive updates from a Satellite
# server, provide the URL of the Satellite server. You must also
# provide a user name (CONFIG_SATELLITE_USERNAME) and password
# (CONFIG_SATELLITE_PASSWORD) or an access key (CONFIG_SATELLITE_AKEY)
# for authentication.
CONFIG_SATELLITE_URL=

# Specify a Satellite 6 Server to register to. If not specified,
# Packstack will register the system to the Red Hat server. When this
# option is specified, you also need to set the Satellite 6
# organization (CONFIG_RH_SAT6_ORG) and an activation key
# (CONFIG_RH_SAT6_KEY).
CONFIG_RH_SAT6_SERVER=

# To subscribe each server with Red Hat Subscription Manager, include
# this with CONFIG_RH_USER.
CONFIG_RH_PW=

# Specify 'y' to enable RHEL optional repositories. ['y', 'n']
CONFIG_RH_OPTIONAL=y

# HTTP proxy to use with Red Hat Subscription Manager.
CONFIG_RH_PROXY=

# Specify a Satellite 6 Server organization to use when registering
# the system.
CONFIG_RH_SAT6_ORG=

# Specify a Satellite 6 Server activation key to use when registering
# the system.
CONFIG_RH_SAT6_KEY=

# Port to use for Red Hat Subscription Manager's HTTP proxy.
CONFIG_RH_PROXY_PORT=

# User name to use for Red Hat Subscription Manager's HTTP proxy.
CONFIG_RH_PROXY_USER=

# Password to use for Red Hat Subscription Manager's HTTP proxy.
CONFIG_RH_PROXY_PW=

# User name to authenticate with the RHN Satellite server; if you
# intend to use an access key for Satellite authentication, leave this
# blank.
CONFIG_SATELLITE_USER=

# Password to authenticate with the RHN Satellite server; if you
# intend to use an access key for Satellite authentication, leave this
# blank.
CONFIG_SATELLITE_PW=

# Access key for the Satellite server; if you intend to use a user
# name and password for Satellite authentication, leave this blank.
CONFIG_SATELLITE_AKEY=

# Certificate path or URL of the certificate authority to verify that
# the connection with the Satellite server is secure. If you are not
# using Satellite in your deployment, leave this blank.
CONFIG_SATELLITE_CACERT=

# Profile name that should be used as an identifier for the system in
# RHN Satellite (if required).
CONFIG_SATELLITE_PROFILE=

# Comma-separated list of flags passed to the rhnreg_ks command.
# Valid flags are: novirtinfo, norhnsd, nopackages ['novirtinfo',
# 'norhnsd', 'nopackages']
CONFIG_SATELLITE_FLAGS=

# HTTP proxy to use when connecting to the RHN Satellite server (if
# required).
CONFIG_SATELLITE_PROXY=

# User name to authenticate with the Satellite-server HTTP proxy.
CONFIG_SATELLITE_PROXY_USER=

# User password to authenticate with the Satellite-server HTTP proxy.
CONFIG_SATELLITE_PROXY_PW=

# Specify filepath for CA cert file. If CONFIG_SSL_CACERT_SELFSIGN is
# set to 'n' it has to be preexisting file.
CONFIG_SSL_CACERT_FILE=/etc/pki/tls/certs/selfcert.crt

# Specify filepath for CA cert key file. If
# CONFIG_SSL_CACERT_SELFSIGN is set to 'n' it has to be preexisting
# file.
CONFIG_SSL_CACERT_KEY_FILE=/etc/pki/tls/private/selfkey.key

# Enter the path to use to store generated SSL certificates in.
CONFIG_SSL_CERT_DIR=~/packstackca/

# Specify 'y' if you want Packstack to pregenerate the CA
# Certificate.
CONFIG_SSL_CACERT_SELFSIGN=y

# Enter the ssl certificates subject country.
CONFIG_SSL_CERT_SUBJECT_C=--

# Enter the ssl certificates subject state.
CONFIG_SSL_CERT_SUBJECT_ST=State

# Enter the ssl certificates subject location.
CONFIG_SSL_CERT_SUBJECT_L=City

# Enter the ssl certificates subject organization.
CONFIG_SSL_CERT_SUBJECT_O=openstack

# Enter the ssl certificates subject organizational unit.
CONFIG_SSL_CERT_SUBJECT_OU=packstack

# Enter the ssl certificates subject common name.
CONFIG_SSL_CERT_SUBJECT_CN=packstack

CONFIG_SSL_CERT_SUBJECT_MAIL=admin@packstack

# Service to be used as the AMQP broker. Allowed values are: rabbitmq
# ['rabbitmq']
CONFIG_AMQP_BACKEND=rabbitmq

# IP address of the server on which to install the AMQP service.
CONFIG_AMQP_HOST=10.0.1.20

# Specify 'y' to enable SSL for the AMQP service. ['y', 'n']
CONFIG_AMQP_ENABLE_SSL=n

# Specify 'y' to enable authentication for the AMQP service. ['y',
# 'n']
CONFIG_AMQP_ENABLE_AUTH=n

# Password for the NSS certificate database of the AMQP service.
CONFIG_AMQP_NSS_CERTDB_PW=PW_PLACEHOLDER

# User for AMQP authentication.
CONFIG_AMQP_AUTH_USER=amqp_user

# Password for AMQP authentication.
CONFIG_AMQP_AUTH_PASSWORD=PW_PLACEHOLDER

# IP address of the server on which to install MariaDB. If a MariaDB
# installation was not specified in CONFIG_MARIADB_INSTALL, specify
# the IP address of an existing database server (a MariaDB cluster can
# also be specified).
CONFIG_MARIADB_HOST=10.0.1.20

# User name for the MariaDB administrative user.
CONFIG_MARIADB_USER=root

# Password for the MariaDB administrative user.
CONFIG_MARIADB_PW=438b090ac8954b38

# Password to use for the Identity service (keystone) to access the
# database.
CONFIG_KEYSTONE_DB_PW=2001d80f5ef94c48

# Enter y if cron job for removing soft deleted DB rows should be
# created.
CONFIG_KEYSTONE_DB_PURGE_ENABLE=True

# Default region name to use when creating tenants in the Identity
# service.
CONFIG_KEYSTONE_REGION=RegionOne

# Token to use for the Identity service API.
CONFIG_KEYSTONE_ADMIN_TOKEN=a862d06c55c143e2822ba5fbe3a19e8f

# Email address for the Identity service 'admin' user.  Defaults to
CONFIG_KEYSTONE_ADMIN_EMAIL=root@localhost

# User name for the Identity service 'admin' user.  Defaults to
# 'admin'.
CONFIG_KEYSTONE_ADMIN_USERNAME=admin

# Password to use for the Identity service 'admin' user.
CONFIG_KEYSTONE_ADMIN_PW=openstack

# Password to use for the Identity service 'demo' user.
CONFIG_KEYSTONE_DEMO_PW=openstack

# Identity service API version string. ['v2.0', 'v3']
CONFIG_KEYSTONE_API_VERSION=v3

# Identity service token format (UUID, PKI or FERNET). The
# recommended format for new deployments is FERNET. ['UUID', 'PKI',
# 'FERNET']
CONFIG_KEYSTONE_TOKEN_FORMAT=FERNET

# Type of Identity service backend (sql or ldap). ['sql', 'ldap']
CONFIG_KEYSTONE_IDENTITY_BACKEND=sql

# URL for the Identity service LDAP backend.
CONFIG_KEYSTONE_LDAP_URL=ldap://10.0.2.15

# User DN for the Identity service LDAP backend.  Used to bind to the
# LDAP server if the LDAP server does not allow anonymous
# authentication.
CONFIG_KEYSTONE_LDAP_USER_DN=

# User DN password for the Identity service LDAP backend.
CONFIG_KEYSTONE_LDAP_USER_PASSWORD=

# Base suffix for the Identity service LDAP backend.
CONFIG_KEYSTONE_LDAP_SUFFIX=

# Query scope for the Identity service LDAP backend. Use 'one' for
# onelevel/singleLevel or 'sub' for subtree/wholeSubtree ('base' is
# not actually used by the Identity service and is therefore
# deprecated). ['base', 'one', 'sub']
CONFIG_KEYSTONE_LDAP_QUERY_SCOPE=one

# Query page size for the Identity service LDAP backend.
CONFIG_KEYSTONE_LDAP_PAGE_SIZE=-1

# User subtree for the Identity service LDAP backend.
CONFIG_KEYSTONE_LDAP_USER_SUBTREE=

# User query filter for the Identity service LDAP backend.
CONFIG_KEYSTONE_LDAP_USER_FILTER=

# User object class for the Identity service LDAP backend.
CONFIG_KEYSTONE_LDAP_USER_OBJECTCLASS=

# User ID attribute for the Identity service LDAP backend.
CONFIG_KEYSTONE_LDAP_USER_ID_ATTRIBUTE=

# User name attribute for the Identity service LDAP backend.
CONFIG_KEYSTONE_LDAP_USER_NAME_ATTRIBUTE=

# User email address attribute for the Identity service LDAP backend.
CONFIG_KEYSTONE_LDAP_USER_MAIL_ATTRIBUTE=

# User-enabled attribute for the Identity service LDAP backend.
CONFIG_KEYSTONE_LDAP_USER_ENABLED_ATTRIBUTE=

# Bit mask integer applied to user-enabled attribute for the Identity
# service LDAP backend. Indicate the bit that the enabled value is
# stored in if the LDAP server represents "enabled" as a bit on an
# integer rather than a boolean. A value of "0" indicates the mask is
# not used (default). If this is not set to "0", the typical value is
# "2", typically used when
# "CONFIG_KEYSTONE_LDAP_USER_ENABLED_ATTRIBUTE = userAccountControl".
CONFIG_KEYSTONE_LDAP_USER_ENABLED_MASK=-1

# Value of enabled attribute which indicates user is enabled for the
# Identity service LDAP backend. This should match an appropriate
# integer value if the LDAP server uses non-boolean (bitmask) values
# to indicate whether a user is enabled or disabled. If this is not
# set as 'y', the typical value is "512". This is typically used when
# "CONFIG_KEYSTONE_LDAP_USER_ENABLED_ATTRIBUTE = userAccountControl".
CONFIG_KEYSTONE_LDAP_USER_ENABLED_DEFAULT=TRUE

# Specify 'y' if users are disabled (not enabled) in the Identity
# service LDAP backend (inverts boolean-enalbed values).  Some LDAP
# servers use a boolean lock attribute where "y" means an account is
# disabled. Setting this to 'y' allows these lock attributes to be
# used. This setting will have no effect if
# "CONFIG_KEYSTONE_LDAP_USER_ENABLED_MASK" is in use. ['n', 'y']
CONFIG_KEYSTONE_LDAP_USER_ENABLED_INVERT=n

# Comma-separated list of attributes stripped from LDAP user entry
# upon update.
CONFIG_KEYSTONE_LDAP_USER_ATTRIBUTE_IGNORE=

# Identity service LDAP attribute mapped to default_project_id for
# users.
CONFIG_KEYSTONE_LDAP_USER_DEFAULT_PROJECT_ID_ATTRIBUTE=

# Specify 'y' if you want to be able to create Identity service users
# through the Identity service interface; specify 'n' if you will
# create directly in the LDAP backend. ['n', 'y']
CONFIG_KEYSTONE_LDAP_USER_ALLOW_CREATE=n

# Specify 'y' if you want to be able to update Identity service users
# through the Identity service interface; specify 'n' if you will
# update directly in the LDAP backend. ['n', 'y']
CONFIG_KEYSTONE_LDAP_USER_ALLOW_UPDATE=n

# Specify 'y' if you want to be able to delete Identity service users
# through the Identity service interface; specify 'n' if you will
# delete directly in the LDAP backend. ['n', 'y']
CONFIG_KEYSTONE_LDAP_USER_ALLOW_DELETE=n

# Identity service LDAP attribute mapped to password.
CONFIG_KEYSTONE_LDAP_USER_PASS_ATTRIBUTE=

# DN of the group entry to hold enabled LDAP users when using enabled
# emulation.
CONFIG_KEYSTONE_LDAP_USER_ENABLED_EMULATION_DN=

# List of additional LDAP attributes for mapping additional attribute
# mappings for users. The attribute-mapping format is
# <ldap_attr>:<user_attr>, where ldap_attr is the attribute in the
# LDAP entry and user_attr is the Identity API attribute.
CONFIG_KEYSTONE_LDAP_USER_ADDITIONAL_ATTRIBUTE_MAPPING=

# Group subtree for the Identity service LDAP backend.
CONFIG_KEYSTONE_LDAP_GROUP_SUBTREE=

# Group query filter for the Identity service LDAP backend.
CONFIG_KEYSTONE_LDAP_GROUP_FILTER=

# Group object class for the Identity service LDAP backend.
CONFIG_KEYSTONE_LDAP_GROUP_OBJECTCLASS=

# Group ID attribute for the Identity service LDAP backend.
CONFIG_KEYSTONE_LDAP_GROUP_ID_ATTRIBUTE=

# Group name attribute for the Identity service LDAP backend.
CONFIG_KEYSTONE_LDAP_GROUP_NAME_ATTRIBUTE=

# Group member attribute for the Identity service LDAP backend.
CONFIG_KEYSTONE_LDAP_GROUP_MEMBER_ATTRIBUTE=

# Group description attribute for the Identity service LDAP backend.
CONFIG_KEYSTONE_LDAP_GROUP_DESC_ATTRIBUTE=

# Comma-separated list of attributes stripped from LDAP group entry
# upon update.
CONFIG_KEYSTONE_LDAP_GROUP_ATTRIBUTE_IGNORE=

# Specify 'y' if you want to be able to create Identity service
# groups through the Identity service interface; specify 'n' if you
# will create directly in the LDAP backend. ['n', 'y']
CONFIG_KEYSTONE_LDAP_GROUP_ALLOW_CREATE=n

# Specify 'y' if you want to be able to update Identity service
# groups through the Identity service interface; specify 'n' if you
# will update directly in the LDAP backend. ['n', 'y']
CONFIG_KEYSTONE_LDAP_GROUP_ALLOW_UPDATE=n

# Specify 'y' if you want to be able to delete Identity service
# groups through the Identity service interface; specify 'n' if you
# will delete directly in the LDAP backend. ['n', 'y']
CONFIG_KEYSTONE_LDAP_GROUP_ALLOW_DELETE=n

# List of additional LDAP attributes used for mapping additional
# attribute mappings for groups. The attribute=mapping format is
# <ldap_attr>:<group_attr>, where ldap_attr is the attribute in the
# LDAP entry and group_attr is the Identity API attribute.
CONFIG_KEYSTONE_LDAP_GROUP_ADDITIONAL_ATTRIBUTE_MAPPING=

# Specify 'y' if the Identity service LDAP backend should use TLS.
# ['n', 'y']
CONFIG_KEYSTONE_LDAP_USE_TLS=n

# CA certificate directory for Identity service LDAP backend (if TLS
# is used).
CONFIG_KEYSTONE_LDAP_TLS_CACERTDIR=

# CA certificate file for Identity service LDAP backend (if TLS is
# used).
CONFIG_KEYSTONE_LDAP_TLS_CACERTFILE=

# Certificate-checking strictness level for Identity service LDAP
# backend; valid options are: never, allow, demand. ['never', 'allow',
# 'demand']
CONFIG_KEYSTONE_LDAP_TLS_REQ_CERT=demand

# Password to use for the Image service (glance) to access the
# database.
CONFIG_GLANCE_DB_PW=0d36ed19e654478e

# Password to use for the Image service to authenticate with the
# Identity service.
CONFIG_GLANCE_KS_PW=a7a58564762445b2

# Storage backend for the Image service (controls how the Image
# service stores disk images). Valid options are: file or swift
# (Object Storage). The Object Storage service must be enabled to use
# it as a working backend; otherwise, Packstack falls back to 'file'.
# ['file', 'swift']
CONFIG_GLANCE_BACKEND=file

# Password to use for the Block Storage service (cinder) to access
# the database.
CONFIG_CINDER_DB_PW=d5143e26f1bc4fa4

# Enter y if cron job for removing soft deleted DB rows should be
# created.
CONFIG_CINDER_DB_PURGE_ENABLE=True

# Password to use for the Block Storage service to authenticate with
# the Identity service.
CONFIG_CINDER_KS_PW=24d21c3ac97042ab

# Storage backend to use for the Block Storage service; valid options
# are: lvm, gluster, nfs, vmdk, netapp, solidfire. ['lvm', 'gluster',
# 'nfs', 'vmdk', 'netapp', 'solidfire']
CONFIG_CINDER_BACKEND=lvm

# Specify 'y' to create the Block Storage volumes group. That is,
# Packstack creates a raw disk image in /var/lib/cinder, and mounts it
# using a loopback device. This should only be used for testing on a
# proof-of-concept installation of the Block Storage service (a file-
# backed volume group is not suitable for production usage). ['y',
# 'n']
CONFIG_CINDER_VOLUMES_CREATE=y

# Specify a custom name for the lvm cinder volume group
CONFIG_CINDER_VOLUME_NAME=cinder-volumes

# Size of Block Storage volumes group. Actual volume size will be
# extended with 3% more space for VG metadata. Remember that the size
# of the volume group will restrict the amount of disk space that you
# can expose to Compute instances, and that the specified amount must
# be available on the device used for /var/lib/cinder.
CONFIG_CINDER_VOLUMES_SIZE=20G

# A single or comma-separated list of Red Hat Storage (gluster)
# volume shares to mount. Example: 'ip-address:/vol-name', 'domain
# :/vol-name'
CONFIG_CINDER_GLUSTER_MOUNTS=

# A single or comma-separated list of NFS exports to mount. Example:
# 'ip-address:/export-name'
CONFIG_CINDER_NFS_MOUNTS=

# Administrative user account name used to access the NetApp storage
# system or proxy server.
CONFIG_CINDER_NETAPP_LOGIN=

# Password for the NetApp administrative user account specified in
# the CONFIG_CINDER_NETAPP_LOGIN parameter.
CONFIG_CINDER_NETAPP_PASSWORD=

# Hostname (or IP address) for the NetApp storage system or proxy
# server.
CONFIG_CINDER_NETAPP_HOSTNAME=

# The TCP port to use for communication with the storage system or
# proxy. If not specified, Data ONTAP drivers will use 80 for HTTP and
# 443 for HTTPS; E-Series will use 8080 for HTTP and 8443 for HTTPS.
# Defaults to 80.
CONFIG_CINDER_NETAPP_SERVER_PORT=80

# Storage family type used on the NetApp storage system; valid
# options are ontap_7mode for using Data ONTAP operating in 7-Mode,
# ontap_cluster for using clustered Data ONTAP, or E-Series for NetApp
# E-Series. Defaults to ontap_cluster. ['ontap_7mode',
# 'ontap_cluster', 'eseries']
CONFIG_CINDER_NETAPP_STORAGE_FAMILY=ontap_cluster

# The transport protocol used when communicating with the NetApp
# storage system or proxy server. Valid values are http or https.
# Defaults to 'http'. ['http', 'https']
CONFIG_CINDER_NETAPP_TRANSPORT_TYPE=http

# Storage protocol to be used on the data path with the NetApp
# storage system; valid options are iscsi, fc, nfs. Defaults to nfs.
# ['iscsi', 'fc', 'nfs']
CONFIG_CINDER_NETAPP_STORAGE_PROTOCOL=nfs

# Quantity to be multiplied by the requested volume size to ensure
# enough space is available on the virtual storage server (Vserver) to
# fulfill the volume creation request.  Defaults to 1.0.
CONFIG_CINDER_NETAPP_SIZE_MULTIPLIER=1.0

# Time period (in minutes) that is allowed to elapse after the image
# is last accessed, before it is deleted from the NFS image cache.
# When a cache-cleaning cycle begins, images in the cache that have
# not been accessed in the last M minutes, where M is the value of
# this parameter, are deleted from the cache to create free space on
# the NFS share. Defaults to 720.
CONFIG_CINDER_NETAPP_EXPIRY_THRES_MINUTES=720

# If the percentage of available space for an NFS share has dropped
# below the value specified by this parameter, the NFS image cache is
# cleaned.  Defaults to 20.
CONFIG_CINDER_NETAPP_THRES_AVL_SIZE_PERC_START=20

# When the percentage of available space on an NFS share has reached
# the percentage specified by this parameter, the driver stops
# clearing files from the NFS image cache that have not been accessed
# in the last M minutes, where M is the value of the
# CONFIG_CINDER_NETAPP_EXPIRY_THRES_MINUTES parameter. Defaults to 60.
CONFIG_CINDER_NETAPP_THRES_AVL_SIZE_PERC_STOP=60

# Single or comma-separated list of NetApp NFS shares for Block
# Storage to use.  Format: ip-address:/export-name. Defaults to ''.
CONFIG_CINDER_NETAPP_NFS_SHARES=

# File with the list of available NFS shares.   Defaults to
# '/etc/cinder/shares.conf'.
CONFIG_CINDER_NETAPP_NFS_SHARES_CONFIG=/etc/cinder/shares.conf

# This parameter is only utilized when the storage protocol is
# configured to use iSCSI or FC. This parameter is used to restrict
# provisioning to the specified controller volumes. Specify the value
# of this parameter to be a comma separated list of NetApp controller
# volume names to be used for provisioning. Defaults to ''.
CONFIG_CINDER_NETAPP_VOLUME_LIST=

# The vFiler unit on which provisioning of block storage volumes will
# be done. This parameter is only used by the driver when connecting
# to an instance with a storage family of Data ONTAP operating in
# 7-Mode Only use this parameter when utilizing the MultiStore feature
# on the NetApp storage system. Defaults to ''.
CONFIG_CINDER_NETAPP_VFILER=

# The name of the config.conf stanza for a Data ONTAP (7-mode) HA
# partner.  This option is only used by the driver when connecting to
# an instance with a storage family of Data ONTAP operating in 7-Mode,
# and it is required if the storage protocol selected is FC. Defaults
# to ''.
CONFIG_CINDER_NETAPP_PARTNER_BACKEND_NAME=

# This option specifies the virtual storage server (Vserver) name on
# the storage cluster on which provisioning of block storage volumes
# should occur. Defaults to ''.
CONFIG_CINDER_NETAPP_VSERVER=

# Restricts provisioning to the specified controllers. Value must be
# a comma-separated list of controller hostnames or IP addresses to be
# used for provisioning. This option is only utilized when the storage
# family is configured to use E-Series. Defaults to ''.
CONFIG_CINDER_NETAPP_CONTROLLER_IPS=

# Password for the NetApp E-Series storage array. Defaults to ''.
CONFIG_CINDER_NETAPP_SA_PASSWORD=

# This option is used to define how the controllers in the E-Series
# storage array will work with the particular operating system on the
# hosts that are connected to it. Defaults to 'linux_dm_mp'
CONFIG_CINDER_NETAPP_ESERIES_HOST_TYPE=linux_dm_mp

# Path to the NetApp E-Series proxy application on a proxy server.
# The value is combined with the value of the
# CONFIG_CINDER_NETAPP_TRANSPORT_TYPE, CONFIG_CINDER_NETAPP_HOSTNAME,
# and CONFIG_CINDER_NETAPP_HOSTNAME options to create the URL used by
# the driver to connect to the proxy application. Defaults to
# '/devmgr/v2'.
CONFIG_CINDER_NETAPP_WEBSERVICE_PATH=/devmgr/v2

# Restricts provisioning to the specified storage pools. Only dynamic
# disk pools are currently supported. The value must be a comma-
# separated list of disk pool names to be used for provisioning.
# Defaults to ''.
CONFIG_CINDER_NETAPP_STORAGE_POOLS=

# Cluster admin account name used to access the SolidFire storage
# system.
CONFIG_CINDER_SOLIDFIRE_LOGIN=

# Password for the SolidFire cluster admin user account specified in
# the CONFIG_CINDER_SOLIDFIRE_LOGIN parameter.
CONFIG_CINDER_SOLIDFIRE_PASSWORD=

# Hostname (or IP address) for the SolidFire storage system's MVIP.
CONFIG_CINDER_SOLIDFIRE_HOSTNAME=

# Password to use for OpenStack Bare Metal Provisioning (ironic) to
# access the database.
CONFIG_IRONIC_DB_PW=PW_PLACEHOLDER

# Password to use for OpenStack Bare Metal Provisioning to
# authenticate with the Identity service.
CONFIG_IRONIC_KS_PW=PW_PLACEHOLDER

# Enter y if cron job for removing soft deleted DB rows should be
# created.
CONFIG_NOVA_DB_PURGE_ENABLE=True

# Password to use for the Compute service (nova) to access the
# database.
CONFIG_NOVA_DB_PW=d6fc9a80f919466b

# Password to use for the Compute service to authenticate with the
# Identity service.
CONFIG_NOVA_KS_PW=e4773a61b8684f64

# Whether or not Packstack should manage a default initial set of
# Nova flavors. Defaults to 'y'.
CONFIG_NOVA_MANAGE_FLAVORS=y

# Overcommitment ratio for virtual to physical CPUs. Specify 1.0 to
# disable CPU overcommitment.
CONFIG_NOVA_SCHED_CPU_ALLOC_RATIO=16.0

# Overcommitment ratio for virtual to physical RAM. Specify 1.0 to
# disable RAM overcommitment.
CONFIG_NOVA_SCHED_RAM_ALLOC_RATIO=1.5

# Protocol used for instance migration. Valid options are: ssh and
# tcp. Note that the tcp protocol is not encrypted, so it is insecure.
# ['ssh', 'tcp']
CONFIG_NOVA_COMPUTE_MIGRATE_PROTOCOL=ssh

# PEM encoded certificate to be used for ssl on the https server,
# leave blank if one should be generated, this certificate should not
# require a passphrase. If CONFIG_HORIZON_SSL is set to 'n' this
# parameter is ignored.
CONFIG_VNC_SSL_CERT=

# SSL keyfile corresponding to the certificate if one was entered. If
# CONFIG_HORIZON_SSL is set to 'n' this parameter is ignored.
CONFIG_VNC_SSL_KEY=

# Enter the PCI passthrough array of hash in JSON style for
# controller eg. [{"vendor_id":"1234", "product_id":"5678",
# "name":"default"}, {...}]
CONFIG_NOVA_PCI_ALIAS=

# Enter the PCI passthrough whitelist array of hash in JSON style for
# controller eg. [{"vendor_id":"1234", "product_id":"5678",
# "name':"default"}, {...}]
CONFIG_NOVA_PCI_PASSTHROUGH_WHITELIST=

# The hypervisor driver to use with Nova. Can be either 'qemu' or
# 'kvm'. Defaults to 'qemu' on virtual machines and 'kvm' on bare
# metal hardware. For nested KVM set it explicitly to 'kvm'.
CONFIG_NOVA_LIBVIRT_VIRT_TYPE=%{::default_hypervisor}

# Password to use for OpenStack Networking (neutron) to authenticate
# with the Identity service.
CONFIG_NEUTRON_KS_PW=976c2961895641c4

# The password to use for OpenStack Networking to access the
# database.
CONFIG_NEUTRON_DB_PW=99e053b66e0f4731

# The name of the Open vSwitch bridge (or empty for linuxbridge) for
# the OpenStack Networking L3 agent to use for external  traffic.
# Specify 'provider' if you intend to use a provider network to handle
# external traffic.
CONFIG_NEUTRON_L3_EXT_BRIDGE=br-ex

# Password for the OpenStack Networking metadata agent.
CONFIG_NEUTRON_METADATA_PW=05256ed8a49e4a36

# Specify 'y' to install OpenStack Networking's Load-Balancing-
# as-a-Service (LBaaS). ['y', 'n']
CONFIG_LBAAS_INSTALL=y

# Specify 'y' to install OpenStack Networking's L3 Metering agent
# ['y', 'n']
CONFIG_NEUTRON_METERING_AGENT_INSTALL=y

# Specify 'y' to configure OpenStack Networking's Firewall-
# as-a-Service (FWaaS). ['y', 'n']
CONFIG_NEUTRON_FWAAS=n

# Specify 'y' to configure OpenStack Networking's VPN-as-a-Service
# (VPNaaS). ['y', 'n']
CONFIG_NEUTRON_VPNAAS=n

# Comma-separated list of network-type driver entry points to be
# loaded from the neutron.ml2.type_drivers namespace. ['local',
# 'flat', 'vlan', 'gre', 'vxlan', 'geneve']
CONFIG_NEUTRON_ML2_TYPE_DRIVERS=vxlan,flat

# Comma-separated, ordered list of network types to allocate as
# tenant networks. The 'local' value is only useful for single-box
# testing and provides no connectivity between hosts. ['local',
# 'vlan', 'gre', 'vxlan', 'geneve']
CONFIG_NEUTRON_ML2_TENANT_NETWORK_TYPES=vxlan

# Comma-separated ordered list of networking mechanism driver entry
# points to be loaded from the neutron.ml2.mechanism_drivers
# namespace. ['logger', 'test', 'linuxbridge', 'openvswitch',
# 'hyperv', 'ncs', 'arista', 'cisco_nexus', 'mlnx', 'l2population',
# 'sriovnicswitch', 'ovn']
CONFIG_NEUTRON_ML2_MECHANISM_DRIVERS=openvswitch

# Comma-separated list of physical_network names with which flat
# networks can be created. Use * to allow flat networks with arbitrary
# physical_network names.
CONFIG_NEUTRON_ML2_FLAT_NETWORKS=*

# Comma-separated list of <physical_network>:<vlan_min>:<vlan_max> or
# <physical_network> specifying physical_network names usable for VLAN
# provider and tenant networks, as well as ranges of VLAN tags on each
# available for allocation to tenant networks.
CONFIG_NEUTRON_ML2_VLAN_RANGES=

# Comma-separated list of <tun_min>:<tun_max> tuples enumerating
# ranges of GRE tunnel IDs that are available for tenant-network
# allocation. A tuple must be an array with tun_max +1 - tun_min >
# 1000000.
CONFIG_NEUTRON_ML2_TUNNEL_ID_RANGES=

# Comma-separated list of addresses for VXLAN multicast group. If
# left empty, disables VXLAN from sending allocate broadcast traffic
# (disables multicast VXLAN mode). Should be a Multicast IP (v4 or v6)
# address.
CONFIG_NEUTRON_ML2_VXLAN_GROUP=

# Comma-separated list of <vni_min>:<vni_max> tuples enumerating
# ranges of VXLAN VNI IDs that are available for tenant network
# allocation. Minimum value is 0 and maximum value is 16777215.
CONFIG_NEUTRON_ML2_VNI_RANGES=10:100

# Name of the L2 agent to be used with OpenStack Networking.
# ['linuxbridge', 'openvswitch', 'ovn']
CONFIG_NEUTRON_L2_AGENT=openvswitch

# Comma separated list of supported PCI vendor devices defined by
# vendor_id:product_id according to the PCI ID Repository.
CONFIG_NEUTRON_ML2_SUPPORTED_PCI_VENDOR_DEVS=['15b3:1004', '8086:10ca']

# Comma-separated list of interface mappings for the OpenStack
# Networking ML2 SRIOV agent. Each tuple in the list must be in the
# format <physical_network>:<net_interface>. Example:
# physnet1:eth1,physnet2:eth2,physnet3:eth3.
CONFIG_NEUTRON_ML2_SRIOV_INTERFACE_MAPPINGS=

# Comma-separated list of interface mappings for the OpenStack
# Networking linuxbridge plugin. Each tuple in the list must be in the
# format <physical_network>:<net_interface>. Example:
# physnet1:eth1,physnet2:eth2,physnet3:eth3.
CONFIG_NEUTRON_LB_INTERFACE_MAPPINGS=

# Comma-separated list of bridge mappings for the OpenStack
# Networking Open vSwitch plugin. Each tuple in the list must be in
# the format <physical_network>:<ovs_bridge>. Example: physnet1:br-
# eth1,physnet2:br-eth2,physnet3:br-eth3
CONFIG_NEUTRON_OVS_BRIDGE_MAPPINGS=extnet:br-ex

# Comma-separated list of colon-separated Open vSwitch
# <bridge>:<interface> pairs. The interface will be added to the
# associated bridge. If you desire the bridge to be persistent a value
# must be added to this directive, also
# CONFIG_NEUTRON_OVS_BRIDGE_MAPPINGS must be set in order to create
# the proper port. This can be achieved from the command line by
# issuing the following command: packstack --allinone --os-neutron-
# ovs-bridge-mappings=ext-net:br-ex --os-neutron-ovs-bridge-interfaces
# =br-ex:eth0
CONFIG_NEUTRON_OVS_BRIDGE_IFACES=

# Comma-separated list of Open vSwitch bridges that must be created
# and connected to interfaces in compute nodes when flat or vlan type
# drivers are enabled. These bridges must exist in
# CONFIG_NEUTRON_OVS_BRIDGE_MAPPINGS and
# CONFIG_NEUTRON_OVS_BRIDGE_IFACES. Example: --os-neutron-ovs-bridges-
# compute=br-vlan --os-neutron-ovs-bridge-mappings="extnet:br-
# ex,physnet1:br-vlan" --os-neutron-ovs-bridge-interfaces="br-ex:eth1
# ,br-vlan:eth2"
CONFIG_NEUTRON_OVS_BRIDGES_COMPUTE=

# Name of physical network used for external network when enabling
# CONFIG_PROVISION_DEMO. Name must be one of the included in
# CONFIG_NEUTRON_OVS_BRIDGE_MAPPINGS. Example: --os-neutron-ovs-
# bridge-mappings="extnet:br-ex,physnet1:br-vlan" --os-neutron-ovs-
# bridge-interfaces="br-ex:eth1,br-vlan:eth2" --os-neutron-ovs-
# external-physnet="extnet"
CONFIG_NEUTRON_OVS_EXTERNAL_PHYSNET=extnet

# Interface for the Open vSwitch tunnel. Packstack overrides the IP
# address used for tunnels on this hypervisor to the IP found on the
# specified interface (for example, eth1).
CONFIG_NEUTRON_OVS_TUNNEL_IF=

# Comma-separated list of subnets (for example,
# 192.168.10.0/24,192.168.11.0/24) used for sending tunneling packets.
# This is used to configure IP filtering to accept tunneling packets
# from these subnets instead of specific IP addresses of peer nodes.
# This is useful when you add existing nodes to EXCLUDE_SERVERS
# because, in this case, packstack cannot modify the IP filtering of
# the existing nodes.
CONFIG_NEUTRON_OVS_TUNNEL_SUBNETS=

# VXLAN UDP port.
CONFIG_NEUTRON_OVS_VXLAN_UDP_PORT=4789

# Comma-separated list of bridge mappings for the OpenStack
# Networking Open Virtual Network plugin. Each tuple in the list must
# be in the format <physical_network>:<ovs_bridge>. Example: physnet1
# :br-eth1,physnet2:br-eth2,physnet3:br-eth3
CONFIG_NEUTRON_OVN_BRIDGE_MAPPINGS=extnet:br-ex

# Comma-separated list of colon-separated Open vSwitch
# <bridge>:<interface> pairs. The interface will be added to the
# associated bridge. If you desire the bridge to be persistent a value
# must be added to this directive, also
# CONFIG_NEUTRON_OVN_BRIDGE_MAPPINGS must be set in order to create
# the proper port. This can be achieved from the command line by
# issuing the following command: packstack --allinone --os-neutron-
# ovn-bridge-mappings=ext-net:br-ex --os-neutron-ovn-bridge-interfaces
# =br-ex:eth0
CONFIG_NEUTRON_OVN_BRIDGE_IFACES=

# Comma-separated list of Open vSwitch bridges that must be created
# and connected to interfaces in compute nodes when flat or vlan type
# drivers are enabled. These bridges must exist in
# CONFIG_NEUTRON_OVN_BRIDGE_MAPPINGS and
# CONFIG_NEUTRON_OVN_BRIDGE_IFACES. Example: --os-neutron-ovn-bridges-
# compute=br-vlan --os-neutron-ovn-bridge-mappings="extnet:br-
# ex,physnet1:br-vlan" --os-neutron-ovn-bridge-interfaces="br-ex:eth1
# ,br-vlan:eth2"
CONFIG_NEUTRON_OVN_BRIDGES_COMPUTE=

# Name of physical network used for external network when enabling
# CONFIG_PROVISION_DEMO. Name must be one of the included in
# CONFIG_NEUTRON_OVN_BRIDGE_MAPPINGS. Example: --os-neutron-ovn-
# bridge-mappings="extnet:br-ex,physnet1:br-vlan" --os-neutron-ovn-
# bridge-interfaces="br-ex:eth1,br-vlan:eth2" --os-neutron-ovn-
# external-physnet="extnet"
CONFIG_NEUTRON_OVN_EXTERNAL_PHYSNET=extnet

# Interface for the Open vSwitch tunnel. Packstack overrides the IP
# address used for tunnels on this hypervisor to the IP found on the
# specified interface (for example, eth1).
CONFIG_NEUTRON_OVN_TUNNEL_IF=

# Comma-separated list of subnets (for example,
# 192.168.10.0/24,192.168.11.0/24) used for sending tunneling packets.
# This is used to configure IP filtering to accept tunneling packets
# from these subnets instead of specific IP addresses of peer nodes.
# This is useful when you add existing nodes to EXCLUDE_SERVERS
# because, in this case, packstack cannot modify the IP filtering of
# the existing nodes.
CONFIG_NEUTRON_OVN_TUNNEL_SUBNETS=

# Password to use for the OpenStack File Share service (manila) to
# access the database.
CONFIG_MANILA_DB_PW=PW_PLACEHOLDER

# Password to use for the OpenStack File Share service (manila) to
# authenticate with the Identity service.
CONFIG_MANILA_KS_PW=PW_PLACEHOLDER

# Backend for the OpenStack File Share service (manila); valid
# options are: generic, netapp, glusternative, or glusternfs.
# ['generic', 'netapp', 'glusternative', 'glusternfs']
CONFIG_MANILA_BACKEND=generic

# Denotes whether the driver should handle the responsibility of
# managing share servers. This must be set to false if the driver is
# to operate without managing share servers. Defaults to 'false'
# ['true', 'false']
CONFIG_MANILA_NETAPP_DRV_HANDLES_SHARE_SERVERS=false

# The transport protocol used when communicating with the storage
# system or proxy server. Valid values are 'http' and 'https'.
# Defaults to 'https'. ['https', 'http']
CONFIG_MANILA_NETAPP_TRANSPORT_TYPE=https

# Administrative user account name used to access the NetApp storage
# system.  Defaults to ''.
CONFIG_MANILA_NETAPP_LOGIN=admin

# Password for the NetApp administrative user account specified in
# the CONFIG_MANILA_NETAPP_LOGIN parameter. Defaults to ''.
CONFIG_MANILA_NETAPP_PASSWORD=

# Hostname (or IP address) for the NetApp storage system or proxy
# server. Defaults to ''.
CONFIG_MANILA_NETAPP_SERVER_HOSTNAME=

# The storage family type used on the storage system; valid values
# are ontap_cluster for clustered Data ONTAP. Defaults to
# 'ontap_cluster'. ['ontap_cluster']
CONFIG_MANILA_NETAPP_STORAGE_FAMILY=ontap_cluster

# The TCP port to use for communication with the storage system or
# proxy server. If not specified, Data ONTAP drivers will use 80 for
# HTTP and 443 for HTTPS. Defaults to '443'.
CONFIG_MANILA_NETAPP_SERVER_PORT=443

# Pattern for searching available aggregates for NetApp provisioning.
# Defaults to '(.*)'.
CONFIG_MANILA_NETAPP_AGGREGATE_NAME_SEARCH_PATTERN=(.*)

# Name of aggregate on which to create the NetApp root volume. This
# option only applies when the option
# CONFIG_MANILA_NETAPP_DRV_HANDLES_SHARE_SERVERS is set to True.
CONFIG_MANILA_NETAPP_ROOT_VOLUME_AGGREGATE=

# NetApp root volume name. Defaults to 'root'.
CONFIG_MANILA_NETAPP_ROOT_VOLUME_NAME=root

# This option specifies the storage virtual machine (previously
# called a Vserver) name on the storage cluster on which provisioning
# of shared file systems should occur. This option only applies when
# the option driver_handles_share_servers is set to False. Defaults to
# ''.
CONFIG_MANILA_NETAPP_VSERVER=

# Denotes whether the driver should handle the responsibility of
# managing share servers. This must be set to false if the driver is
# to operate without managing share servers. Defaults to 'true'.
# ['true', 'false']
CONFIG_MANILA_GENERIC_DRV_HANDLES_SHARE_SERVERS=true

# Volume name template for Manila service. Defaults to 'manila-
# share-%s'.
CONFIG_MANILA_GENERIC_VOLUME_NAME_TEMPLATE=manila-share-%s

# Share mount path for Manila service. Defaults to '/shares'.
CONFIG_MANILA_GENERIC_SHARE_MOUNT_PATH=/shares

# Location of disk image for Manila service instance. Defaults to '
CONFIG_MANILA_SERVICE_IMAGE_LOCATION=https://www.dropbox.com/s/vi5oeh10q1qkckh/ubuntu_1204_nfs_cifs.qcow2

# User in Manila service instance.
CONFIG_MANILA_SERVICE_INSTANCE_USER=ubuntu

# Password to service instance user.
CONFIG_MANILA_SERVICE_INSTANCE_PASSWORD=ubuntu

# Type of networking that the backend will use. A more detailed
# description of each option is available in the Manila docs. Defaults
# to 'neutron'. ['neutron', 'nova-network', 'standalone']
CONFIG_MANILA_NETWORK_TYPE=neutron

# Gateway IPv4 address that should be used. Required. Defaults to ''.
CONFIG_MANILA_NETWORK_STANDALONE_GATEWAY=

# Network mask that will be used. Can be either decimal like '24' or
# binary like '255.255.255.0'. Required. Defaults to ''.
CONFIG_MANILA_NETWORK_STANDALONE_NETMASK=

# Set it if network has segmentation (VLAN, VXLAN, etc). It will be
# assigned to share-network and share drivers will be able to use this
# for network interfaces within provisioned share servers. Optional.
# Example: 1001. Defaults to ''.
CONFIG_MANILA_NETWORK_STANDALONE_SEG_ID=

# Can be IP address, range of IP addresses or list of addresses or
# ranges. Contains addresses from IP network that are allowed to be
# used. If empty, then will be assumed that all host addresses from
# network can be used. Optional. Examples: 10.0.0.10 or
# 10.0.0.10-10.0.0.20 or
# 10.0.0.10-10.0.0.20,10.0.0.30-10.0.0.40,10.0.0.50. Defaults to ''.
CONFIG_MANILA_NETWORK_STANDALONE_IP_RANGE=

# IP version of network. Optional. Defaults to '4'. ['4', '6']
CONFIG_MANILA_NETWORK_STANDALONE_IP_VERSION=4

# List of GlusterFS servers that can be used to create shares. Each
# GlusterFS server should be of the form [remoteuser@]<volserver>, and
# they are assumed to belong to distinct Gluster clusters.
CONFIG_MANILA_GLUSTERFS_SERVERS=

# Path of Manila host's private SSH key file.
CONFIG_MANILA_GLUSTERFS_NATIVE_PATH_TO_PRIVATE_KEY=

# Regular expression template used to filter GlusterFS volumes for
# share creation. The regex template can optionally (ie. with support
# of the GlusterFS backend) contain the #{size} parameter which
# matches an integer (sequence of digits) in which case the value
# shall be intepreted as size of the volume in GB. Examples: "manila-
# share-volume-d+$", "manila-share-volume-#{size}G-d+$"; with matching
# volume names, respectively: "manila-share-volume-12", "manila-share-
# volume-3G-13". In latter example, the number that matches "#{size}",
# that is, 3, is an indication that the size of volume is 3G.
CONFIG_MANILA_GLUSTERFS_VOLUME_PATTERN=

# Specifies the GlusterFS volume to be mounted on the Manila host.
# For e.g: [remoteuser@]<volserver>:/<volid>
CONFIG_MANILA_GLUSTERFS_TARGET=

# Base directory containing mount points for Gluster volumes.
CONFIG_MANILA_GLUSTERFS_MOUNT_POINT_BASE=

# Type of NFS server that mediate access to the Gluster volumes
# (Gluster or Ganesha).
CONFIG_MANILA_GLUSTERFS_NFS_SERVER_TYPE=gluster

# Path of Manila host's private SSH key file.
CONFIG_MANILA_GLUSTERFS_PATH_TO_PRIVATE_KEY=

# Remote Ganesha server node's IP address.
CONFIG_MANILA_GLUSTERFS_GANESHA_SERVER_IP=

# Specify 'y' to set up Horizon communication over https. ['y', 'n']
CONFIG_HORIZON_SSL=n

# Secret key to use for Horizon Secret Encryption Key.
CONFIG_HORIZON_SECRET_KEY=a8fe06092db44944a5bc6305911bbcd6

# PEM-encoded certificate to be used for SSL connections on the https
# server. To generate a certificate, leave blank.
CONFIG_HORIZON_SSL_CERT=

# SSL keyfile corresponding to the certificate if one was specified.
# The certificate should not require a passphrase.
CONFIG_HORIZON_SSL_KEY=

CONFIG_HORIZON_SSL_CACERT=

# Password to use for the Object Storage service to authenticate with
# the Identity service.
CONFIG_SWIFT_KS_PW=d09d01ba889b482e

# Comma-separated list of devices to use as storage device for Object
# Storage. Each entry must take the format /path/to/dev (for example,
# specifying /dev/vdb installs /dev/vdb as the Object Storage storage
# device; Packstack does not create the filesystem, you must do this
# first). If left empty, Packstack creates a loopback device for test
# setup.
CONFIG_SWIFT_STORAGES=

# Number of Object Storage storage zones; this number MUST be no
# larger than the number of configured storage devices.
CONFIG_SWIFT_STORAGE_ZONES=1

# Number of Object Storage storage replicas; this number MUST be no
# larger than the number of configured storage zones.
CONFIG_SWIFT_STORAGE_REPLICAS=1

# File system type for storage nodes. ['xfs', 'ext4']
CONFIG_SWIFT_STORAGE_FSTYPE=ext4

# Custom seed number to use for swift_hash_path_suffix in
# /etc/swift/swift.conf. If you do not provide a value, a seed number
# is automatically generated.
CONFIG_SWIFT_HASH=21aa09faa5474ad6

# Size of the Object Storage loopback file storage device.
CONFIG_SWIFT_STORAGE_SIZE=2G

# Password used by Orchestration service user to authenticate against
# the database.
CONFIG_HEAT_DB_PW=f7ca5fea54fe4e60

# Encryption key to use for authentication in the Orchestration
# database (16, 24, or 32 chars).
CONFIG_HEAT_AUTH_ENC_KEY=e3c4823d506c4d6d

# Password to use for the Orchestration service to authenticate with
# the Identity service.
CONFIG_HEAT_KS_PW=678525b8eaca46c4

# Specify 'y' to install the Orchestration CloudFormation API. ['y',
# 'n']
CONFIG_HEAT_CFN_INSTALL=y

# Name of the Identity domain for Orchestration.
CONFIG_HEAT_DOMAIN=heat

# Name of the Identity domain administrative user for Orchestration.
CONFIG_HEAT_DOMAIN_ADMIN=heat_admin

# Password for the Identity domain administrative user for
# Orchestration.
CONFIG_HEAT_DOMAIN_PASSWORD=4e6b56b8b8f14ccd

# Specify 'y' to provision for demo usage and testing. ['y', 'n']
CONFIG_PROVISION_DEMO=y

# Specify 'y' to configure the OpenStack Integration Test Suite
# (tempest) for testing. The test suite requires OpenStack Networking
# to be installed. ['y', 'n']
CONFIG_PROVISION_TEMPEST=n

# CIDR network address for the floating IP subnet.
CONFIG_PROVISION_DEMO_FLOATRANGE=172.24.4.0/24

# Allocation pools in the floating IP subnet.
CONFIG_PROVISION_DEMO_ALLOCATION_POOLS=[]

# The name to be assigned to the demo image in Glance (default
# "cirros").
CONFIG_PROVISION_IMAGE_NAME=cirros

# A URL or local file location for an image to download and provision
# in Glance (defaults to a URL for a recent "cirros" image).
CONFIG_PROVISION_IMAGE_URL=http://download.cirros-cloud.net/0.3.5/cirros-0.3.5-x86_64-disk.img

# Format for the demo image (default "qcow2").
CONFIG_PROVISION_IMAGE_FORMAT=qcow2

# Properties of the demo image (none by default).
CONFIG_PROVISION_IMAGE_PROPERTIES=

# User to use when connecting to instances booted from the demo
# image.
CONFIG_PROVISION_IMAGE_SSH_USER=cirros

# Name of the uec image created in Glance used in tempest tests
# (default "cirros-uec").
CONFIG_PROVISION_UEC_IMAGE_NAME=cirros-uec

# URL of the kernel image copied to Glance image for uec image
# (defaults to a URL for a recent "cirros" uec image).
CONFIG_PROVISION_UEC_IMAGE_KERNEL_URL=http://download.cirros-cloud.net/0.3.5/cirros-0.3.5-x86_64-kernel

# URL of the ramdisk image copied to Glance image for uec image
# (defaults to a URL for a recent "cirros" uec image).
CONFIG_PROVISION_UEC_IMAGE_RAMDISK_URL=http://download.cirros-cloud.net/0.3.5/cirros-0.3.5-x86_64-initramfs

# URL of the disk image copied to Glance image for uec image
# (defaults to a URL for a recent "cirros" uec image).
CONFIG_PROVISION_UEC_IMAGE_DISK_URL=http://download.cirros-cloud.net/0.3.5/cirros-0.3.5-x86_64-disk.img

CONFIG_TEMPEST_HOST=

# Name of the Integration Test Suite provisioning user. If you do not
# provide a user name, Tempest is configured in a standalone mode.
CONFIG_PROVISION_TEMPEST_USER=

# Password to use for the Integration Test Suite provisioning user.
CONFIG_PROVISION_TEMPEST_USER_PW=PW_PLACEHOLDER

# CIDR network address for the floating IP subnet.
CONFIG_PROVISION_TEMPEST_FLOATRANGE=172.24.4.0/24

# Primary flavor name to use in Tempest.
CONFIG_PROVISION_TEMPEST_FLAVOR_NAME=m1.nano

# Primary flavor's disk quota in Gb.
CONFIG_PROVISION_TEMPEST_FLAVOR_DISK=0

# Primary flavor's ram in Mb.
CONFIG_PROVISION_TEMPEST_FLAVOR_RAM=128

# Primary flavor's vcpus number.
CONFIG_PROVISION_TEMPEST_FLAVOR_VCPUS=1

# Alternative flavor name to use in Tempest.
CONFIG_PROVISION_TEMPEST_FLAVOR_ALT_NAME=m1.micro

# Alternative flavor's disk quota in Gb.
CONFIG_PROVISION_TEMPEST_FLAVOR_ALT_DISK=0

# Alternative flavor's ram in Mb.
CONFIG_PROVISION_TEMPEST_FLAVOR_ALT_RAM=128

# Alternative flavor's vcpus number.
CONFIG_PROVISION_TEMPEST_FLAVOR_ALT_VCPUS=1

# Specify 'y' to run Tempest smoke test as last step of installation.
CONFIG_RUN_TEMPEST=n

# Test suites to run, example: "smoke dashboard TelemetryAlarming".
# Optional, defaults to "smoke".
CONFIG_RUN_TEMPEST_TESTS=smoke

# Specify 'y' to configure the Open vSwitch external bridge for an
# all-in-one deployment (the L3 external bridge acts as the gateway
# for virtual machines). ['y', 'n']
CONFIG_PROVISION_OVS_BRIDGE=y

# Password to use for Gnocchi to access the database.
CONFIG_GNOCCHI_DB_PW=46612ab8aebe46c4

# Password to use for Gnocchi to authenticate with the Identity
# service.
CONFIG_GNOCCHI_KS_PW=bdef00d6ab8f4ec3

# Secret key for signing Telemetry service (ceilometer) messages.
CONFIG_CEILOMETER_SECRET=0f2c8fc4b0aa4ca6

# Password to use for Telemetry to authenticate with the Identity
# service.
CONFIG_CEILOMETER_KS_PW=6f6306dc0e504470

# Ceilometer service name. ['httpd', 'ceilometer']
CONFIG_CEILOMETER_SERVICE_NAME=httpd

# Backend driver for Telemetry's group membership coordination.
# ['redis', 'none']
CONFIG_CEILOMETER_COORDINATION_BACKEND=redis

# Whether to enable ceilometer middleware in swift proxy. By default
# this should be false to avoid unnecessary load.
CONFIG_ENABLE_CEILOMETER_MIDDLEWARE=n

# IP address of the server on which to install the Redis server.
CONFIG_REDIS_HOST=10.0.1.20

# Port on which the Redis server listens.
CONFIG_REDIS_PORT=6379

# Password to use for Telemetry Alarming to authenticate with the
# Identity service.
CONFIG_AODH_KS_PW=6452ce6bfc8244a5

# Password to use for Telemetry Alarming (AODH) to access the
# database.
CONFIG_AODH_DB_PW=67194291fed6497c

# Password to use for Panko to access the database.
CONFIG_PANKO_DB_PW=PW_PLACEHOLDER

# Password to use for Panko to authenticate with the Identity
# service.
CONFIG_PANKO_KS_PW=PW_PLACEHOLDER

# Password to use for OpenStack Database-as-a-Service (trove) to
# access the database.
CONFIG_TROVE_DB_PW=PW_PLACEHOLDER

# Password to use for OpenStack Database-as-a-Service to authenticate
# with the Identity service.
CONFIG_TROVE_KS_PW=PW_PLACEHOLDER

# User name to use when OpenStack Database-as-a-Service connects to
# the Compute service.
CONFIG_TROVE_NOVA_USER=trove

# Tenant to use when OpenStack Database-as-a-Service connects to the
# Compute service.
CONFIG_TROVE_NOVA_TENANT=services

# Password to use when OpenStack Database-as-a-Service connects to
# the Compute service.
CONFIG_TROVE_NOVA_PW=PW_PLACEHOLDER

# Password to use for OpenStack Data Processing (sahara) to access
# the database.
CONFIG_SAHARA_DB_PW=PW_PLACEHOLDER

# Password to use for OpenStack Data Processing to authenticate with
# the Identity service.
CONFIG_SAHARA_KS_PW=PW_PLACEHOLDER

# Password to use for the Magnum to access the database.
CONFIG_MAGNUM_DB_PW=PW_PLACEHOLDER

# Password to use for the Magnum to authenticate with the Identity
# service.
CONFIG_MAGNUM_KS_PW=PW_PLACEHOLDER
